Bộ cảo thủy lực 2 chấu 12 tấn Omarstar CK-802 Extra

Liên hệ

Mã sản phẩm: CK-802 Extra
Thương hiệu: Omarstar
Công nghệ: Nhật
Xuất xứ: Đài Loan
Bảo hành: 06 Tháng
Trọng lượng: 9.0 kg

Title:

Kích thước:

Màu sắc:

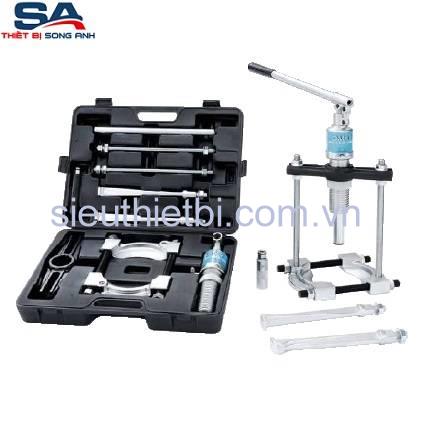

Bộ cảo thủy lực 2 chấu 12 tấn Omarstar CK-802 Extra

2 Screw/Straight Jaw 6~12 Ton

- Self-contained Hydraulic Puller, no need for extra hand pump, hose and coupling, allows operating by one person.

- 360° Rotary handle swivel clevis allows pumping at all directions.

- Safety valve minimizes the risk of the puller overload by limiting the applied force

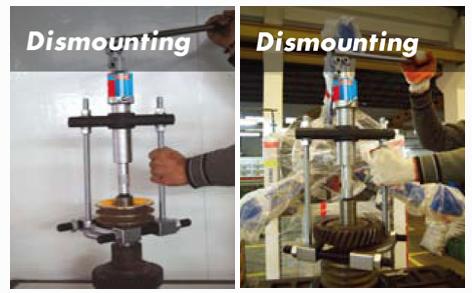

- Complete hydraulic puller allows effortless generation of force and dismounting.

- The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft.

- Forging parts and special treatment provide long life service and the best strength.

Output	Item No.	Reach	Spread	Stroke	Jaw Tip (mm)			Net Weight	Gross Weight
Ton Max.	Item No.							N.W	G.W



		(mm)	(mm)	(mm)	A	B	C
6 Tons	CK-601	300	90/210	82	-	-	-	6.9	8.2
6 Tons	CK-602	190	90/210	82	15	7	24	6.55	7.82
10 Tons	CK-601 Extra	300	90/210	82	-	-	-	6.9	8.2
10 Tons	CK-602 Extra	190	90/210	82	15	7	24	6.55	7.82
8 Tons	CK-801	300	90/210	82	-	-	-	7.42	8.7
8 Tons	CK-802	245	90/210	82	15	7	24	7.7	9
12 Tons	CK-801 Extra	300	90/210	82	-	-	-	7.42	8.7
12 Tons	CK-802 Extra	245	90/210	82	15	7	24	7.7	9

Mô tả

Bộ cảo thủy lực 2 chấu 12 tấn Omarstar CK-802 Extra

2 Screw/Straight Jaw 6~12 Ton

- Self-contained Hydraulic Puller, no need for extra hand pump, hose and coupling, allows operating by one person.

- 360° Rotary handle swivel clevis allows pumping at all directions.

- Safety valve minimizes the risk of the puller overload by limiting the applied force

- Complete hydraulic puller allows effortless generation of force and dismounting.

- The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft.

- Forging parts and special treatment provide long life service and the best strength.

Output	Item No.	Reach	Spread	Stroke	Jaw Tip (mm)			Net Weight	Gross Weight
Ton Max.	Item No.							N.W	G.W



		(mm)	(mm)	(mm)	A	B	C
6 Tons	CK-601	300	90/210	82	-	-	-	6.9	8.2
6 Tons	CK-602	190	90/210	82	15	7	24	6.55	7.82
10 Tons	CK-601 Extra	300	90/210	82	-	-	-	6.9	8.2
10 Tons	CK-602 Extra	190	90/210	82	15	7	24	6.55	7.82
8 Tons	CK-801	300	90/210	82	-	-	-	7.42	8.7
8 Tons	CK-802	245	90/210	82	15	7	24	7.7	9
12 Tons	CK-801 Extra	300	90/210	82	-	-	-	7.42	8.7
12 Tons	CK-802 Extra	245	90/210	82	15	7	24	7.7	9
