Bộ đột lỗ gioăng 2-60mm Boehm 832100 2-60

Bộ đột lỗ gioăng Boehm 832100 2-60

Mã hàng Hoffmann Group: 832100 2-60

Mã hàng hãng sản xuất BOEHM: JLB260PACC

Bộ đột lỗ gioăng Boehm chuyên dùng đột lỗ thùng carton, da, roăng cao su, sợi, nhựa, chì, v.v...

Thông số kỹ thuật bộ đột lỗ gioăng Boehm 832100 2-60

- Đầu đột đi kèm size ⌀: 2 3 4 5 6 7 8 9 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60, gồm Circle cutter 55...240 mm

Description

Version:

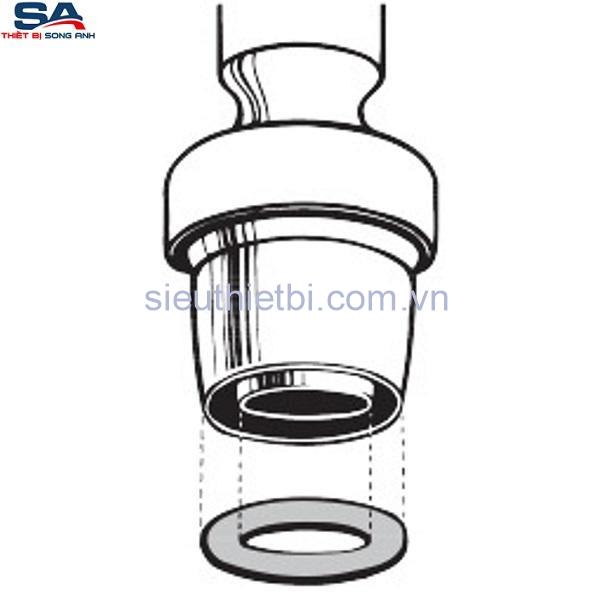

2-component holder (up to size 3-20) with pistol handle with exchangeable precision ground punch cutters. For the production of gaskets two punch cutters of different ⌀ are inserted together in the holder.

Application:

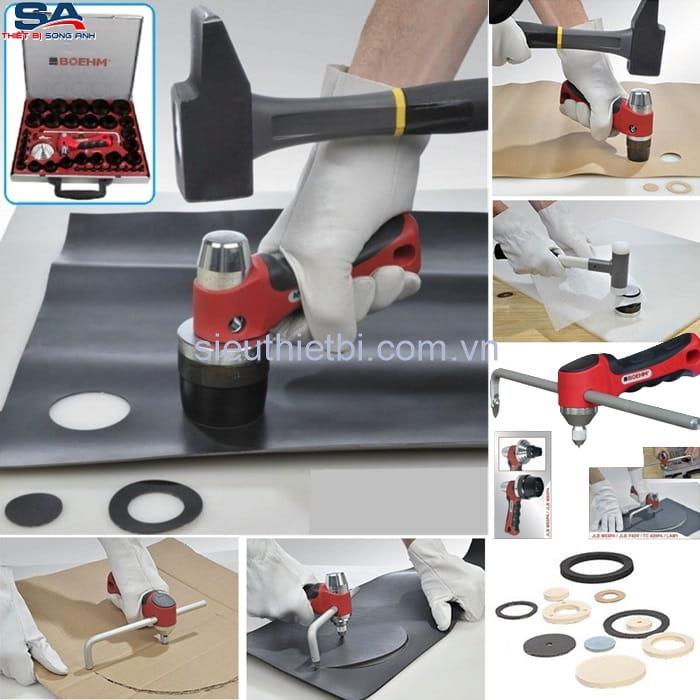

For punching or manufacturing discs / rings in one operation. For rubber, leather, felt, plastic, cork, fabric or similar materials.

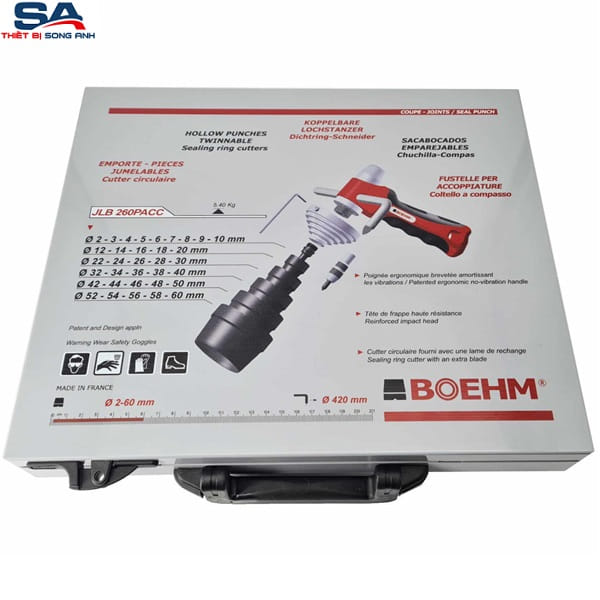

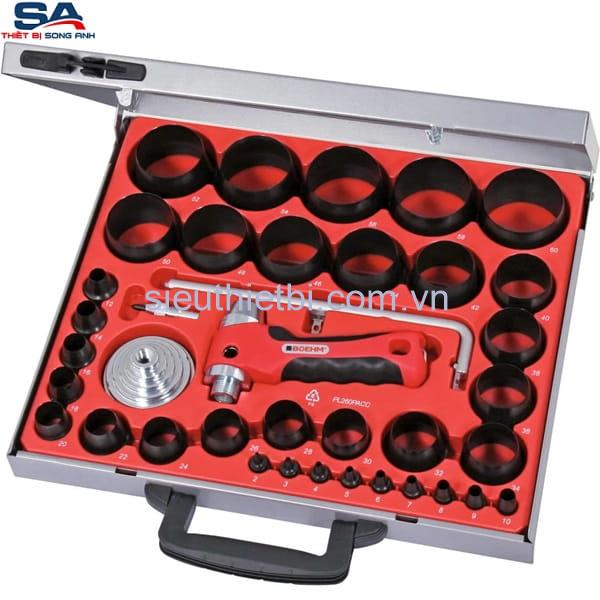

Supplied with table use:

1× each punching tool ⌀ No. 832110: 34 pcs.
size 2‑60
Available combinations of punches inner : outer (mm): 2−10 inner with 12−60 outer 12−20 inner with 22−60 outer 22−30 inner with 32−60 outer 32−40 inner with 42−60 outer 42−50 inner with 52−60 outer
Container length×width×height (mm): Sheet metal approx. 380×315×55
Centring point No. 832140: 1 pc.
1 each circle cutter ⌀: 55-420 mm

Note:

- Use an underlay of wood, leather etc. when punching to avoid damage.

- The following combinations are not possible: 20 (inner) with 22 (outer); 30 (inner) with 32 (outer); 40 (inner) with 42 (outer); 50 (inner) with 52 (outer).
