Bộ tua vít cân chỉnh lực EDS Wiha 30495.
2882

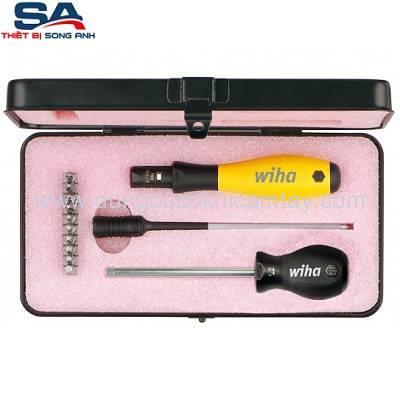

Torque screwdriver TorqueVario®-S ESD
variably settable torque limit
Application
For ESD applications where recommended torque settings are important. Use in combination with a Wiha Torque ESD interchangeable blade.
Standards
IEC 61340-5-1. DIN EN ISO 6789.
Handle
Torque infinitely adjustable with Torque-Setter setting tool (also supplied). Ergonomic multi-component handle, made of ESD-safe dissipative material. Handle sizes proportioned to optimise torque setting. Audible and perceptible click when the pre-set torque has been attained. Surface resistance 106 - 109 ohms. Compatible with all blades of the 2889 series.
Accuracy
±6%, tracing to national standards (see table for other tolerances).
Note
Bit holders or blades are not included in delivery.
Extra
Delivered in practical plastic box, incl. factory calibration certificate.
Article-/Order Overview
Order-No. |
Nm |
Tolerance |
Hex |
Handle length |
Handle diameter |
Weight |
36851 |
0,04-0,46 |
10% |
4 |
127 |
23 |
138 |
26865 |
0,1-0,6 |
10% |
4 |
127 |
23 |
141 |
36852 |
0,1-0,6 |
6% |
4 |
127 |
23 |
137 |
26629 |
0,4-1,0 |
6% |
4 |
127 |
23 |
139 |
26866 |
0,5-2,0 |
6% |
4 |
131 |
30 |
189 |
30495 |
0,8-5,0 |
6% |
4 |
138 |
36 |
238 |
