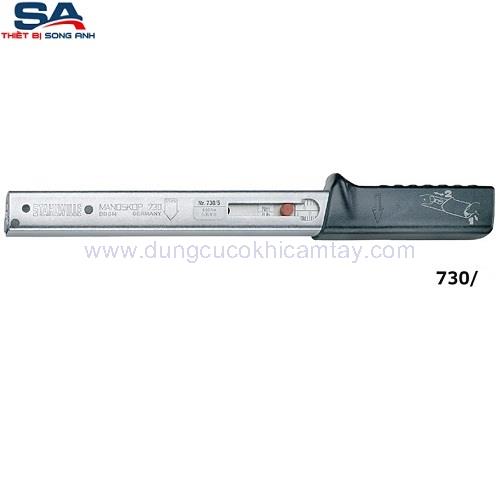

Cần xiết lực 80-400Nm Stahlwille 730/40

Cần xiết chỉnh lực 80-400 Nm Stahlwille 730/40.
Mã hàng: 50180040
Thông số kỹ thuật:

Code	Size						b	h	L	LF	SF
						mm	mm	mm	mm	mm	mm	g
50180005	5	6–50 N m	5–36 ft.lb	2 N m	1 ft.lb		28	23	315	288	17.5	805
50180010	10	20–100 N m	15–72.5 ft.lb	2.5 N m	2.5 ft.lb		28	23	370	343	17.5	965
50180012	12	25–130 N m	20–95 ft.lb	2.5 N m	2.5 ft.lb		28	23	410	390	25	1100
50180020	20	40–200 N m	30–145 ft.lb	5 N m	5 ft.lb		28	23	455	435	25	1250
50180040	40	80–400 N m	60–300 ft.lb	10 N m	10 ft.lb		28	23	590	570	25	1880
50180065	65	130–650 N m	100–480 ft.lb	20 N m	20 ft.lb		30.6	25.6	875	855	25	3280
50580005	a/5	6–50 N m	50–440 in.lb	2 N m	10 in.lb		28	23	315	288	17.5	805
50580010	a/10	20–100 N m	180–880 in.lb	2.5 N m	20 in.lb		28	23	370	343	17.5	965
50580012	a/12	25–130 N m	225–1150 in.lb	2.5 N m	25 in.lb		28	23	410	390	25	1100
50580020	a/20	40–200 N m	350–1750 in.lb	5 N m	50 in.lb		28	23	455	435	25	1250

730 - Basic wrenches with tool carrier for insert tools

Service MANOSKOP® 730

- Cut-out type
- Mount for interchangeable insert/shell tools
- QuickRelease safety lock (sizes 5-65)
- Rapid setting (sizes 2-65)
- Dual stop signal
- Twin scales N·m/ft·lb and N·m/in·lb (sizes 5-80)
- The measuring element is only under load while force is being applied, no need for manual reset to zero
- Can be applied for either clockwise or anticlockwise tightening by turning the inserts over
- Any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g.
forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
- Calibration using perfectControl calibrating unit No 7794 or calibration system No 7706. Adjustment without disassembly.
- With certificate
- Display deviation value ± 4%
