Cần xiết lực điện tử 10-200Nm Stahlwille 713R/20

Code	Size			Dr		b	h	L
				inch	mm	mm	mm	mm	g	with box
96501606	6	3–60 N m	2.5–44 ft.lb	3/8"		50	33.5	378	856	1500
96501620	20	10–200 N m	7–148 ft.lb	1/2"		50	33.5	608	1552	2430
96501640	40	20–400 N m	15–296 ft.lb	3/4"		50	33.5	838	2332	5555

Indicating torque wrenches

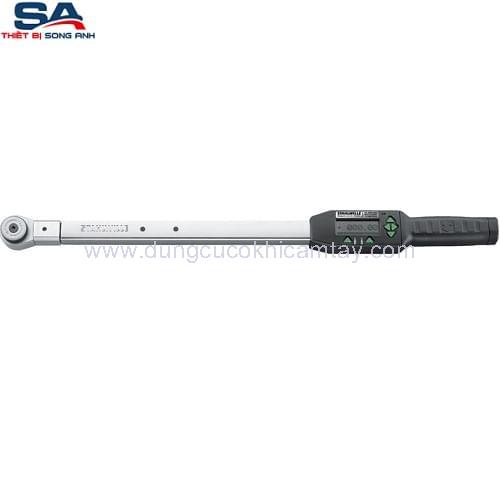

Electronic angle-controlled torque wrench Sensotork® 713
• simple, flexible operation thanks to operator guidance on large-format display
• very broad measuring range (5% to 100% of rated value)
• supplied with insert tool reversible ratchet, more insert tools
• QuickRelease safety lock
• for clockwise and anticlockwise torquing
• measurements independent of the point of application of force (sizes 6 and 20)
• units of measurement: N m, ft.lb, in.lb
• advance warning points programmable for visual, tactile and acoustic signals
• torque and angle are simultaneously visible
• convenient angle measurement across a very wide angle range without a reference arm
• insert tool lengths can be individually set
• maintenance friendly due to easy adjustment and automatic reminder of next calibration date
• repeated joints can be collated to form a single menu-guided sequence
• individual identification markings possible
• password protection to prevent inadvertent changes and make the tool tamper-proof
• meets requirements of DKD-R 3-7, Class 2
• works certificate in accordance with DIN EN 10204
• in sturdy plastic case (size 40 in tough steel case)
• supplied with three 1.5 V AA batteries. AA/LR6, 1.2 V NiMH rechargeable cells may also be used.
• fully automated calibration (torque) using perfectControl calibrating unit No 7794-2. Adjustment without disassembly.
• display deviation value for angle ± 1%
• display deviation value ± 1%
