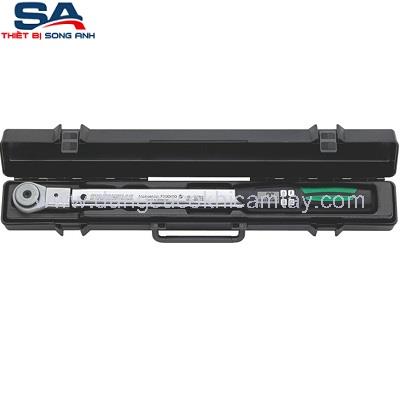

Cần xiết lực điện tử 40-400Nm Stahlwille 730DR/40

Code	Size							Dr
					Nm	ft.lb	in.lb	Inch	g	with box
96501810	10	10–100 N m	7.4–75 ft.lb	90–900 in.lb	0.2/0.1	0.2/0.1	2/1.0	1/2"	1232	1657
96501820	20	20–200 N m	15–150 ft.lb	180–1800 in.lb	0.5/0.1	0.5/0.1	5/1.0	1/2"	1663	2198
96501840	40	40–400 N m	30–300 ft.lb	360–3600 in.lb	1.0/0.1	1.0/0.1	10/1.0	3/4"	2232	4722
96501865	65	65–650 N m	48–480 ft.lb	580–5800 in.lb	1.0/0.1	1.0/0.1	10/1.0	3/4"	3767	6530

Service work & series production MANOSKOP® – indicating and cut-out
• tactile and acoustic trigger signal
• mount for interchangeable insert tools
• QuickRelease safety lock
• fast setting using convenient keypad
• automatic compensation to achieve correct tightening torque even if a changed extension is entered
• overload protection by means of acoustic and visual signals
• automatic keypad lock prevents inadvertent changes
• angle-controlled measurements without a reference arm using Angle Module No 7395-1 (refer to page 165)
• display also works for anticlockwise torque
• units of measurement: N m, ft.lb, in.lb
• different tolerance limits can be set for each joint
• visual red and green signals in the display confirm the status of the joint
• additional security for presets (function mode, trigger or preset value, unit of measurement, tolerance, save, deviating extension) using PIN code
• up to 7.500 measurements can be stored
• USB interface
• automatic notification of the next calibration date
• calibration using perfectControl calibrating unit No 7794 or calibration system No 7706
• two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)
• with certificate
• in sturdy plastic case (sizes 40 and 65 in steel case)
• patents applied for
• supplied with two 1.5 V AA batteries. AA/LR6, 1.2 V rechargeable cells may also be used.
• display deviation value ± 2%
