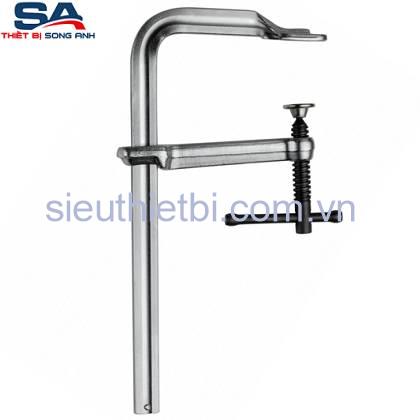

Cảo chữ F 500mm Facom 274.500
Thông số kỹ thuật:
- Độ mở: 500 mm
- Độ sâu kẹp: 120 mm
- Chiều dài: 560mm
274 - G-CLAMP 6500 N
Description :
• Capacity: 0 to 500 mm.
• Tightening: 6500 N max.
• Hardened profile rail, forged dog and slider, square thread screw for tight fastening.
• Ball joint angle 30°.
• Presentation: galvanised.
References :
Code |
A maxi [mm] |
L [mm] |
L1 [mm] |
L2 [mm] |
P [mm] |
[kg] |
274.200 |
200 |
250 |
150 |
100 |
100 |
0,7 |
274.300 |
300 |
360 |
190 |
140 |
140 |
1,6 |
274.400 |
400 |
460 |
170 |
120 |
120 |
1,65 |
274.500 |
500 |
560 |
170 |
120 |
120 |
2,0 |
