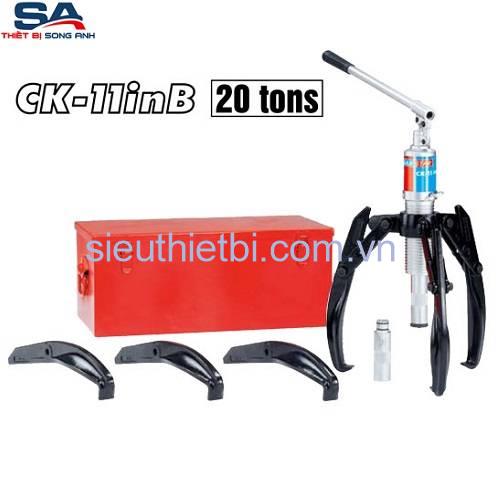

Cảo thủy lực 3 chấu 20 tấn Omarstar CK-11INB

Cảo thủy lực 3 chấu 20 tấn Omarstar CK-11INB

Cobra 10~25 Ton-2 Set Jaws

- Self-contained Hydraulic Puller, no need for extra hand pump, hose and coupling, allows operating by one person.

- 2 / 3 jaws combination puller head.

- Jaws in 2 lengths, user can choose jaws according to needs.

- Life time warranty for cobra jaws.

- 360° Rotary handle swivel clevis allows pumping at all directions.

- Safety valve minimizes the risk of the puller overload by limiting the applied force.

- Complete hydraulic puller allows effortless generation of force and dismounting.

- The spring-loaded centre point of the hydraulic spindle allows easy centering the puller on the shaft.

- Forging parts and special treatment provide long life service and the best strength.

Output	Item No.	Reach	Spread	Stroke	Jaw Tip (mm)			Net Weight	Gross Weight
Ton Max.	Item No.							N.W	G.W
		(mm)	(mm)	(mm)	A	B	C
10 Tons	CK-6INB Extra	195/250	30-280/340	82-180	13/15	5/8	22/25	10.8	14.1
12 Tons	CK-8INB Extra	240/280	30-330/400	82-240	15/18	8	25/29	15.6	24
20 Tons	CK-11INB	275/330	50-380/450	82-280	18/28	11/8	29/33	22.15	32.8
25 Tons	CK-12INB	315/380	50-440/540	110-330	28/30	11/8	33/40	33.66	64.35
