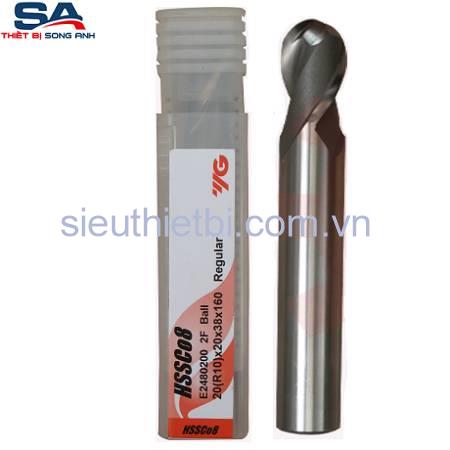

Dao phay cầu YG1 E2480

Liên hệ

Mã sản phẩm: E2480
Thương hiệu: YG1
Công nghệ: Hàn Quốc
Xuất xứ: Hàn Quốc
Bảo hành: 06 tháng
Trọng lượng: 0.1 Kg

Title:

Kích thước:

Màu sắc:

Dao phay cầu YG1 E2480...series

Vật liệu: HSS-Co8 (Cobalt 8%)

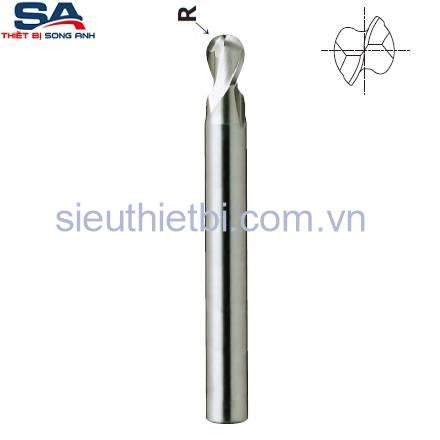

HSSCo8, 2 FLUTE REGULAR LENGTH BALL NOSE E2480 SERIES

The two flute ball End Mills are designed for milling of radius bottom slot, fillet and special contour. The end teeth are cut to center allowing these end mills to drill into material at the beginning of a slotting cut.
The two flute design provides good chip ejection ability in slotting.

EDP No.	Radius of	Mill	Shank	Length	Overall
	Ball Nose	Diameter	Diameter	of Cut	Length
UNCOATED	R (±0.02)
E2480010	R0.5	1.0	6	2.5	50
E2480015	R0.75	1.5	6	4	50
E2480020	R1.0	2.0	6	5	50
E2480025	R1.25	2.5	6	6	60
E2480030	R1.5	3.0	6	8	60
E2480901	R2.0	4.0	6	8	70
E2480902	R2.5	5.0	6	10	80
E2480903	R3.0	6.0	6	12	90
E2480904	R3.5	7.0	8	14	90
E2480905	R4.0	8.0	8	14	100
E2480090	R4.5	9.0	10	18	100
E2480100	R5.0	10.0	10	18	100
E2480110	R5.5	11.0	12	22	100
E2480120	R6.0	12.0	12	22	110
E2480130	R6.5	13.0	12	26	110
E2480906	R7.0	14.0	12	26	110
E2480907	R7.5	15.0	12	30	110
E2480160	R8.0	16.0	16	30	140
E2480170	R8.5	17.0	16	34	140
E2480180	R9.0	18.0	16	34	140
E2480190	R9.5	19.0	16	38	140
E2480200	R10.0	20.0	20	38	160
E2480210	R10.5	21.0	20	45	170
E2480220	R11.0	22.0	20	45	170
E2480230	R11.5	23.0	20	50	180
E2480908	R12.0	24.0	20	50	180
E2480240	R12.0	24.0	25	50	180
E2480250	R12.5	25.0	25	50	180
E2480260	R13.0	26.0	25	50	180
E2480270	R13.5	27.0	25	50	180
E2480280	R14.0	28.0	25	50	180
E2480300	R15.0	30.0	25	55	180
E2480320	R16.0	32.0	32	60	180
E2480350	R17.5	35.0	32	60	180
E2480400	R20.0	40.0	32	65	200
E2480500	R25.0	50.0	42	75	210

Mô tả

Dao phay cầu YG1 E2480...series

Vật liệu: HSS-Co8 (Cobalt 8%)

HSSCo8, 2 FLUTE REGULAR LENGTH BALL NOSE E2480 SERIES

EDP No.	Radius of	Mill	Shank	Length	Overall
	Ball Nose	Diameter	Diameter	of Cut	Length
UNCOATED	R (±0.02)
E2480010	R0.5	1.0	6	2.5	50
E2480015	R0.75	1.5	6	4	50
E2480020	R1.0	2.0	6	5	50
E2480025	R1.25	2.5	6	6	60
E2480030	R1.5	3.0	6	8	60
E2480901	R2.0	4.0	6	8	70
E2480902	R2.5	5.0	6	10	80
E2480903	R3.0	6.0	6	12	90
E2480904	R3.5	7.0	8	14	90
E2480905	R4.0	8.0	8	14	100
E2480090	R4.5	9.0	10	18	100
E2480100	R5.0	10.0	10	18	100
E2480110	R5.5	11.0	12	22	100
E2480120	R6.0	12.0	12	22	110
E2480130	R6.5	13.0	12	26	110
E2480906	R7.0	14.0	12	26	110
E2480907	R7.5	15.0	12	30	110
E2480160	R8.0	16.0	16	30	140
E2480170	R8.5	17.0	16	34	140
E2480180	R9.0	18.0	16	34	140
E2480190	R9.5	19.0	16	38	140
E2480200	R10.0	20.0	20	38	160
E2480210	R10.5	21.0	20	45	170
E2480220	R11.0	22.0	20	45	170
E2480230	R11.5	23.0	20	50	180
E2480908	R12.0	24.0	20	50	180
E2480240	R12.0	24.0	25	50	180
E2480250	R12.5	25.0	25	50	180
E2480260	R13.0	26.0	25	50	180
E2480270	R13.5	27.0	25	50	180
E2480280	R14.0	28.0	25	50	180
E2480300	R15.0	30.0	25	55	180
E2480320	R16.0	32.0	32	60	180
E2480350	R17.5	35.0	32	60	180
E2480400	R20.0	40.0	32	65	200
E2480500	R25.0	50.0	42	75	210
