Dây hơi PU Yomax

Liên hệ

Mã sản phẩm: PU0805
Thương hiệu: Yomax
Công nghệ: Đài Loan
Xuất xứ: Đài Loan
Bảo hành: -
Trọng lượng: 3.0 Kg

Title:

Kích thước:

Màu sắc:

Dây hơi Yomax, Dây hơi PU Yomax, dây hơi khí nén Yomax Taiwan

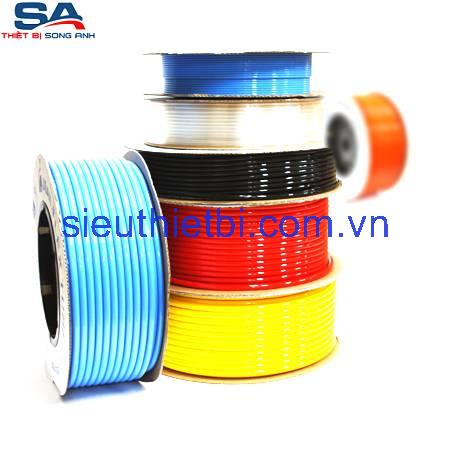

Yomax PU Tubing

- Ultra softness enables to display excellent efficiency in piping.
- Superior anti-pressure, anti-vibration, anti-rust, anti-heat, anti-chemical & anti-oil
- Low-absorbtive rate, low physical performance deterioration & low changeable rate of measurement.
- Outstanding anti-weater, anti-curve & anti-fatigue.
- Lightness & softness of hose enable to increase the productivity of piping work.
- Wide applicable range of temperature.
- Various tube colours make it easier to distinguish the pipes on another.
- Temperature range: -20°C ~ +80°C

Model	Size	O/D (mm)	I/D (mm)	Thickness (mm)	Burst pressure at 20°C (kg/cm2)	Min Curvature Radius (mm)	Weight (g/m)
PU0402	4x2	4.0	2.0	1.00	23	10	11
PU0604	6x4	6.0	4.0	1.00	23	15	19
PU0805	8x5	8.0	5.0	1.50	23	23	37
PU1065	10x6.5	10.0	6.5	1.75	23	30	55
PU1208	12x8	12.0	8.0	2.00	23	35	76
PU1410	14x10	14.0	10.0
PU1612	16x12	16.0	12.0

Mô tả

Dây hơi Yomax, Dây hơi PU Yomax, dây hơi khí nén Yomax Taiwan

Yomax PU Tubing

Model	Size	O/D (mm)	I/D (mm)	Thickness (mm)	Burst pressure at 20°C (kg/cm2)	Min Curvature Radius (mm)	Weight (g/m)
PU0402	4x2	4.0	2.0	1.00	23	10	11
PU0604	6x4	6.0	4.0	1.00	23	15	19
PU0805	8x5	8.0	5.0	1.50	23	23	37
PU1065	10x6.5	10.0	6.5	1.75	23	30	55
PU1208	12x8	12.0	8.0	2.00	23	35	76
PU1410	14x10	14.0	10.0
PU1612	16x12	16.0	12.0
