Kích thủy lực 100 tấn hành trình 50mm Enpos ECPR-10050.

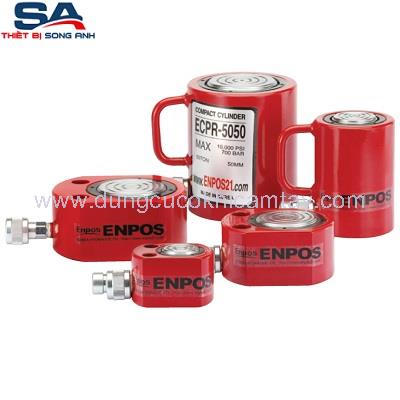

ENPOS LOW PROFILE & COMPACT CYLINDER
COMPACT CYLINDER ECPR-SERIES
- CAPACITY: 10-100 ton |
|
- STROKE: 35-50 mm |
- Max Pressure: 700kg/cm2 |
- SINGLE ACTING |
- SPRING RETURN |
- Coupler: PT 3/8 PIN coupler |
Tube: SCM440 |
Special size is available(optional).F15 |
Model |
Tonnage |
Stroke |
Oil capacity |
Effective area |
Collapsed
Height |
Extended
Height |
Outside
Diameter |
D |
E |
F |
Weight |
|
(ton) |
(mm) |
(cc) |
(cm2) |
A (mm) |
B (mm) |
C (mm) |
(mm) |
(mm) |
(mm) |
(kg) |
ECPR-1035 |
10 |
35 |
56 |
15.9 |
113 |
148 |
63 |
45 |
38 |
20 |
2.4 |
ECPR-1050 |
10 |
50 |
80 |
15.9 |
128 |
178 |
63 |
45 |
38 |
20 |
2.7 |
ECPR-2050 |
20 |
50 |
156 |
31.2 |
128 |
178 |
88 |
63 |
50 |
20 |
5 |
ECPR-3050 |
30 |
50 |
221 |
44.2 |
140 |
190 |
98 |
75 |
65 |
21 |
7 |
ECPR-5050 |
50 |
50 |
354 |
70.8 |
150 |
200 |
125 |
95 |
80 |
24 |
12 |
ECPR-10050 |
100 |
50 |
716 |
143.1 |
185 |
235 |
178 |
135 |
110 |
35 |
39 |
