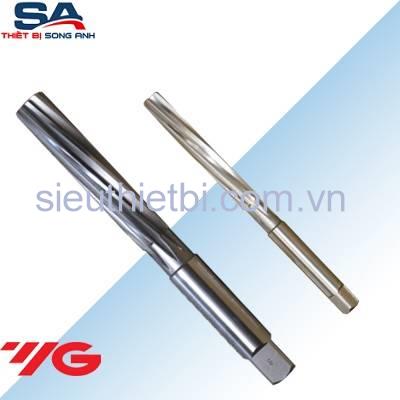

Mũi doa tay me xoắn YG1 K1153

Liên hệ

Mã sản phẩm: K1153
Thương hiệu: YG1
Công nghệ: Hàn Quốc
Xuất xứ: Hàn Quốc
Bảo hành: 06 tháng
Trọng lượng: 0.1 Kg

Title:

Kích thước:

Màu sắc:

Dao doa tay me xoắn YG1 K1153...series

HSS HAND REAMERS - LH SPIRAL FLUTES K1153 SERIES

EDP No.	Nominal Size	Flute Length	Overall Length	No.of
Mã EDP	D1 = D2	L1	L2	Flutes
K115300200	2	25	50	4
K115300220	2.2	27	54	4
K115300250	2.5	29	58	4
K115300280	2.8	31	62	4
K115300300	3	31	62	6
K115300320	3.2	33	66	6
K115300350	3.5	35	71	6
K115300400	4	38	76	6
K115300450	4.5	41	81	6
K115300500	5	44	87	6
K115300550	5.5	47	93	6
K115300600	6	47	93	6
K115300700	7	54	107	6
K115300800	8	58	115	6
K115300900	9	62	124	6
K115301000	10	66	133	6
K115301100	11	71	142	6
K115301200	12	76	152	6
K115301300	13	76	152	6
K115301400	14	81	163	8
K115301500	15	81	163	8
K115301600	16	87	175	8
K115301700	17	87	175	8
K115301800	18	93	188	8
K115301900	19	93	188	8
K115302000	20	100	201	8
K115302200	22	107	215	8
K115302400	24	115	231	8
K115302500	25	115	231	8
K115302600	26	115	231	8
K115302700	27	124	247	10
K115302800	28	124	247	10
K115302900	29	124	247	10
K115303000	30	124	247	10
K115303100	31	133	265	10
K115303200	32	133	265	10
K115303300	33	133	265	10
K115303400	34	142	284	10
K115303500	35	142	284	10
K115303600	36	142	284	10
K115303700	37	142	284	10
K115303800	38	152	305	10
K115303810	38.1	152	305	10
K115303900	39	152	305	10
K115304000	40	152	305	10
K115304100	41	152	305	12
K115304200	42	152	305	12
K115304300	43	163	326	12
K115304400	44	163	326	12
K115304500	45	163	326	12
K115304600	46	163	326	12
K115304700	47	163	326	12
K115304800	48	174	347	12
K115304900	49	174	347	12
K115305200	52	174	347	12
K115306000	60	184	367	12

Mô tả

Dao doa tay me xoắn YG1 K1153...series

HSS HAND REAMERS - LH SPIRAL FLUTES K1153 SERIES

EDP No.	Nominal Size	Flute Length	Overall Length	No.of
Mã EDP	D1 = D2	L1	L2	Flutes
K115300200	2	25	50	4
K115300220	2.2	27	54	4
K115300250	2.5	29	58	4
K115300280	2.8	31	62	4
K115300300	3	31	62	6
K115300320	3.2	33	66	6
K115300350	3.5	35	71	6
K115300400	4	38	76	6
K115300450	4.5	41	81	6
K115300500	5	44	87	6
K115300550	5.5	47	93	6
K115300600	6	47	93	6
K115300700	7	54	107	6
K115300800	8	58	115	6
K115300900	9	62	124	6
K115301000	10	66	133	6
K115301100	11	71	142	6
K115301200	12	76	152	6
K115301300	13	76	152	6
K115301400	14	81	163	8
K115301500	15	81	163	8
K115301600	16	87	175	8
K115301700	17	87	175	8
K115301800	18	93	188	8
K115301900	19	93	188	8
K115302000	20	100	201	8
K115302200	22	107	215	8
K115302400	24	115	231	8
K115302500	25	115	231	8
K115302600	26	115	231	8
K115302700	27	124	247	10
K115302800	28	124	247	10
K115302900	29	124	247	10
K115303000	30	124	247	10
K115303100	31	133	265	10
K115303200	32	133	265	10
K115303300	33	133	265	10
K115303400	34	142	284	10
K115303500	35	142	284	10
K115303600	36	142	284	10
K115303700	37	142	284	10
K115303800	38	152	305	10
K115303810	38.1	152	305	10
K115303900	39	152	305	10
K115304000	40	152	305	10
K115304100	41	152	305	12
K115304200	42	152	305	12
K115304300	43	163	326	12
K115304400	44	163	326	12
K115304500	45	163	326	12
K115304600	46	163	326	12
K115304700	47	163	326	12
K115304800	48	174	347	12
K115304900	49	174	347	12
K115305200	52	174	347	12
K115306000	60	184	367	12
