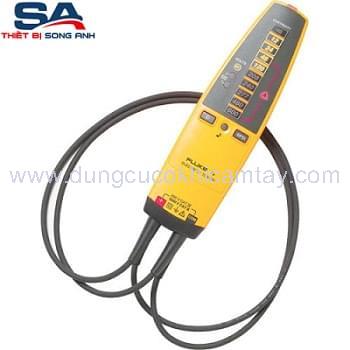

Thiết bị kiểm tra điện Fluke T+

Liên hệ

Mã sản phẩm: T+
Thương hiệu: Fluke
Công nghệ: Mỹ
Xuất xứ: Trung Quốc
Bảo hành: 12 Tháng
Trọng lượng: 0.3 Kg

Title:

Kích thước:

Màu sắc:

Dụng cụ kiểm tra điện Fluke T+

Thông số kỹ thuật:

Máy đo nhiệt độ bằng tia hồng ngoại Fluke T+

Specifications
Temperature	Operating	-10°C to 55°C (14°F to 131°F)
	Storage	-30°C to 60°C (-22°F to 140°F)
Relative humidity	90%	0°C to 30°C (32°F to 86°F)
	75%	30°C to 40°C (86°F to 104°F)
	45%	40°C to 50°C (104°F to 122°F)
Altitude	Operating	2,000 m (approx. 6,561.6 ft)
	Storage	10,000 m (approx. 32,808.4 ft)
Battery type/life	AAA (2); 40 hours
Shock, vibration	Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
Safety	ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV
	Compliance to NFPA 70E¹
AC bandwidth	45 Hz to 66 Hz
Maximum working voltage	1000 V AC/DC
Maximum measurable voltage	600 V AC/DC
Duty cycle	Indefinitely for voltages up to 240 V
	For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off
	For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s
Voltage hazard LED	LEDs turn on at voltages > 30 V AC/DC ± 35%
LED voltage indication levels	12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V
LEDs	LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%
LCD resolution	0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V
GFCI test current	100 V - 150 V @ 6 mA - 9 mA AC, 150 V - 240 V < 12 mA
Standard input test current	< 5 mA
Size (H x W x L)	1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )
Weight	9.9 oz (0.28 kg)

Dụng cụ kiểm tra điện Fluke T+

Thông số kỹ thuật:

Máy đo nhiệt độ bằng tia hồng ngoại Fluke T+

Specifications
Temperature	Operating	-10°C to 55°C (14°F to 131°F)
	Storage	-30°C to 60°C (-22°F to 140°F)
Relative humidity	90%	0°C to 30°C (32°F to 86°F)
	75%	30°C to 40°C (86°F to 104°F)
	45%	40°C to 50°C (104°F to 122°F)
Altitude	Operating	2,000 m (approx. 6,561.6 ft)
	Storage	10,000 m (approx. 32,808.4 ft)
Battery type/life	AAA (2); 40 hours
Shock, vibration	Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument
Safety	ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV
	Compliance to NFPA 70E¹
AC bandwidth	45 Hz to 66 Hz
Maximum working voltage	1000 V AC/DC
Maximum measurable voltage	600 V AC/DC
Duty cycle	Indefinitely for voltages up to 240 V
	For voltages between 240 V and 600 V the duty cycle is 30 s on / 300 s off
	For voltages above 240 V the tester must connect to a voltage source only for a MAXIMUM of 30 s and then disconnect for a MINIMUM of 300 s
Voltage hazard LED	LEDs turn on at voltages > 30 V AC/DC ± 35%
LED voltage indication levels	12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V
LEDs	LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%
LCD resolution	0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V
GFCI test current	100 V - 150 V @ 6 mA - 9 mA AC, 150 V - 240 V < 12 mA
Standard input test current	< 5 mA
Size (H x W x L)	1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm )
Weight	9.9 oz (0.28 kg)
