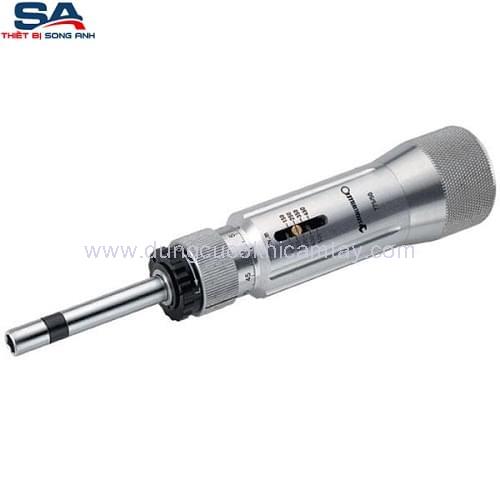

Tô vít cân chỉnh lực 100-500 cNm Stahlwille 775/50

Tô vít cân chỉnh lực 100-500 cNm Stahlwille 775/50.
Mã hàng: 51060050
Torque screwdrivers
TORSIOMAX 775
• cut-out type
• for torque-controlled bolt tightening in the cN m and in.lb ranges
• for one-off or production runs
• measuring element is a screw compression spring
• anticlockwise and clockwise tightening
• with 1/4'' internal hex drive (F 6.3 DIN 3126/ISO1173)
• infinitely variable via micrometer scale (twist scale)
• disengaging clutch coupling prevents the preset value being exceeded
• the shape of the handle and its surface texture ensure safe and accurate transmission of torque
• insert tools: For all 1/4'' hex E 6.3, Phillips-head screws, POZIDRIV / SUPADRIV®, straight-slot, TORX®, hex BITS (see pp. 153, 154). For very small joints, BITS with a 4 mm hex drive and an adapter No 3115/2 for BITS screwdriver inserts, Type C4, and external hex 1/4'' (E 6.3 DIN 3126/ISO 1173) are required (refer to pages 148, 151).
• display deviation value ± 6%
775 Torque screwdriver TORSIOMAX

Code	Size			inside	L
					mm	g
51060003	31)	2–30 cN m	0.2 cN m	F 6.3	105	210
51060012	122)	20–120 cN m	1 cN m	F 6.3	157	195
51060030	302)	40–300 cN m	1 cN m	F 6.3	160	215
51060050	502)	100–500 cN m	2.5 cN m	F 6.3	205	455
51060100	1003)	400–1000 cN m	5 cN m	F 6.3	235	770
51460003	a/31)	0.2–3 in.lb	0.02 in.lb	F 6.3	105	210
51460012	a/122)	2–12 in.lb	0.1 in.lb	F 6.3	157	350
51460050	a/502)	10–50 in.lb	0.25 in.lb	F 6.3	160	606

¹) with a swivelling handle-end to improve tool control; and with a clamping screw for locking the preset.
²) with an additional locking mechanism to prevent the selected torque being inadvertently adjusted.
³) with screw-on handles for increasing the force applied for large torques.

Note!
Torque tightening tools are measuring instruments.
They must be regularly calibrated with suitable instruments and adjusted accordingly
(see DIN EN ISO 6789, 5.3 Recalibrating).
