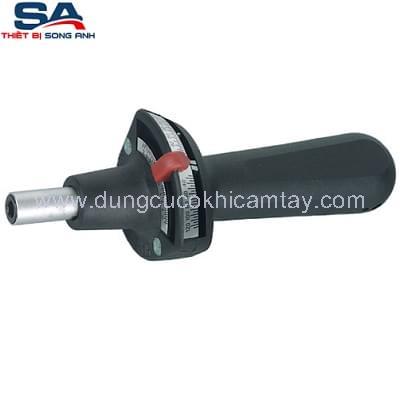

Tua vít lực 60-300 cNm Stahlwille 760/30

Liên hệ

Mã sản phẩm: 51040030
Thương hiệu: Stahlwille
Công nghệ: Đức
Xuất xứ: Đức
Bảo hành: 12 tháng
Trọng lượng: 230 g

Title:

Kích thước:

Màu sắc:

Tua vít cân lực 60-300 cNm Stahlwille 760/30
Mã hàng: 51040030
TORSIOMETER 760
• indicating type
• the measuring element is a torsional leaf spring
• clockwise tightening (with trailing pointer) and anticlockwise tightening
• with 1/4'' internal hex drive (F 6.3 DIN 3126)
• comparative scale in in.lb and cursor
• inserts and adaptors with external hex E 6.3 (1/4'') DIN 3126/ISO 1173 are securely held and firmly controlled in the mounting shaft (for BITS screwdriver inserts, refer to pages 153, 154).
• to attach 1/4'' sockets, please order adaptor No 3115 (refer to page 152).
• display deviation value ± 4%
760 Torque screwdrivers TORSIOMETER

Code	Size				inside	L
Code	Size					mm	g
51060003	7.5	15–75 cN m	1.5–6.5 in.lb	2.5 cN m	F 6.3	185	225
51060012	15	30–150 cN m	3–13 in.lb	5 cN m	F 6.3	185	225
51060030	30	60–300 cN m	6–26 in.lb	10 cN m	F 6.3	185	230
51060050	60	120–600 cN m	12–52 in.lb	20 cN m	F 6.3	185	230

Mô tả

Code	Size				inside	L
Code	Size					mm	g
51060003	7.5	15–75 cN m	1.5–6.5 in.lb	2.5 cN m	F 6.3	185	225
51060012	15	30–150 cN m	3–13 in.lb	5 cN m	F 6.3	185	225
51060030	30	60–300 cN m	6–26 in.lb	10 cN m	F 6.3	185	230
51060050	60	120–600 cN m	12–52 in.lb	20 cN m	F 6.3	185	230
